Some parts have already been put together for testing ...

Drehschiebebuehne_163 (fspg2)


I still don't like the wheels - they are being redrawn and printed. The tread is simply too narrow!


Then a few fiddly jobs followed,

Drehschiebebuehne_164 (fspg2)



Drehschiebebuehne_165 (fspg2)

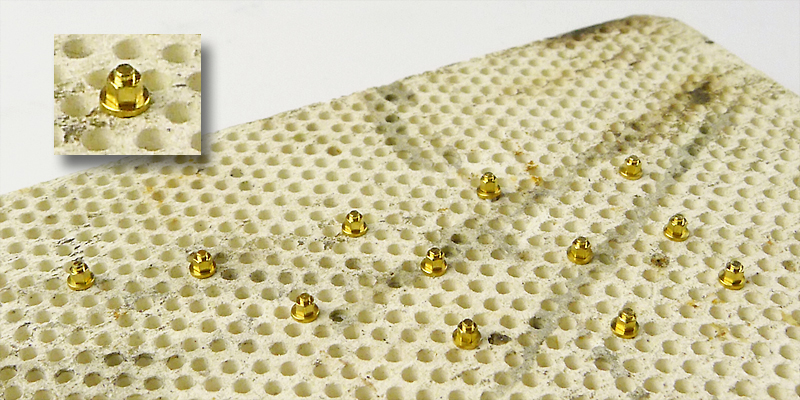

... I shortened the M0.6mm screws before assembly. Once again, a 0.5mm thick sheet metal helped, in which 0.5mm holes were drilled and then the 0.6mm thread was cut.

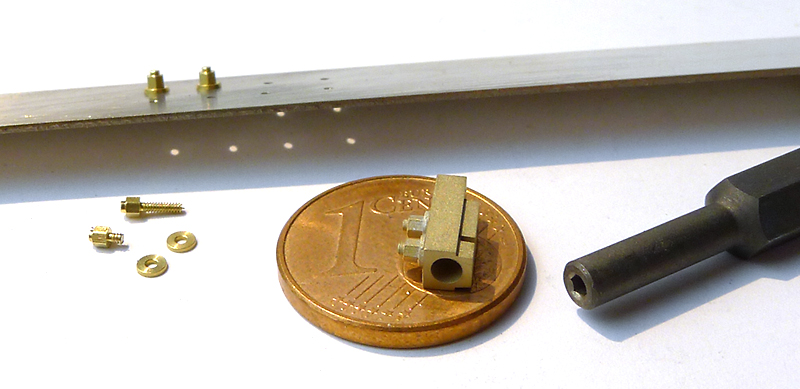

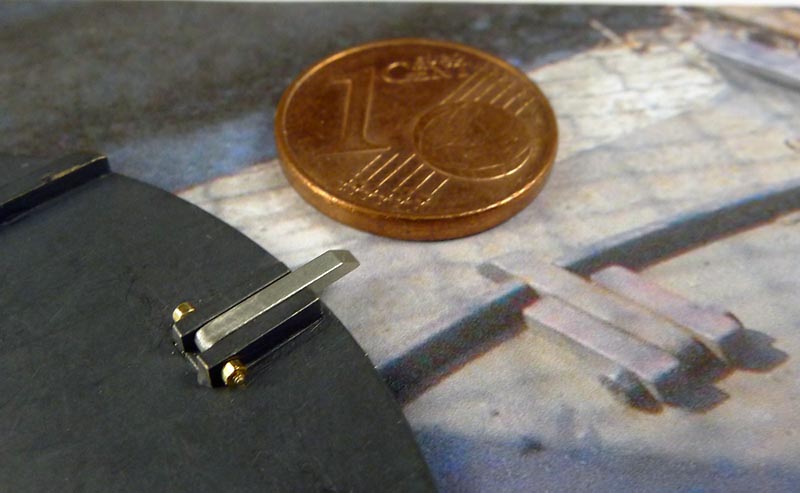

After the required hexagon screws with a 0.3mm thick washer each had been mounted, the threads on the back of the sheet were cut off and sanded flush on a sandpaper tray.
Now all threads have a length of 0.8 mm and could be screwed into the axle bearings and soldered without the axles being obstructed.

Drehschiebebuehne_166 (fspg2)


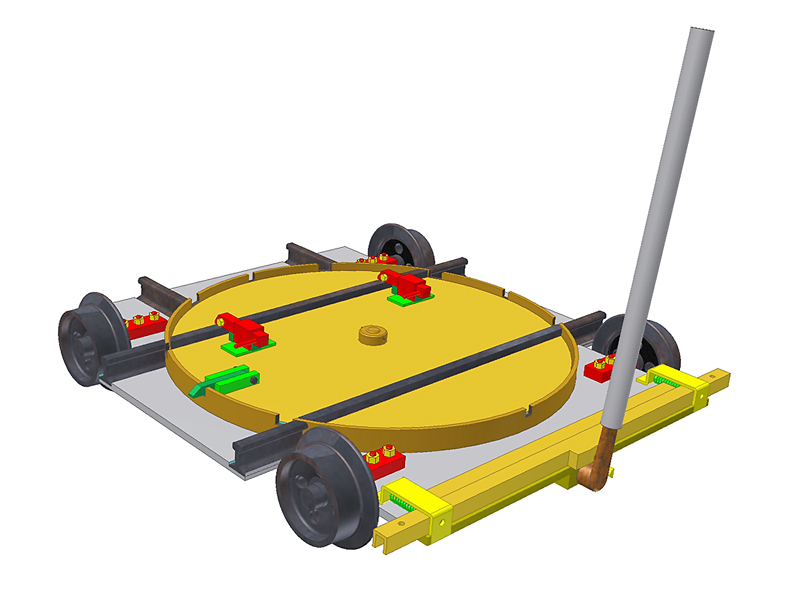

When it comes to the braking system, I want to see whether I can make it work.

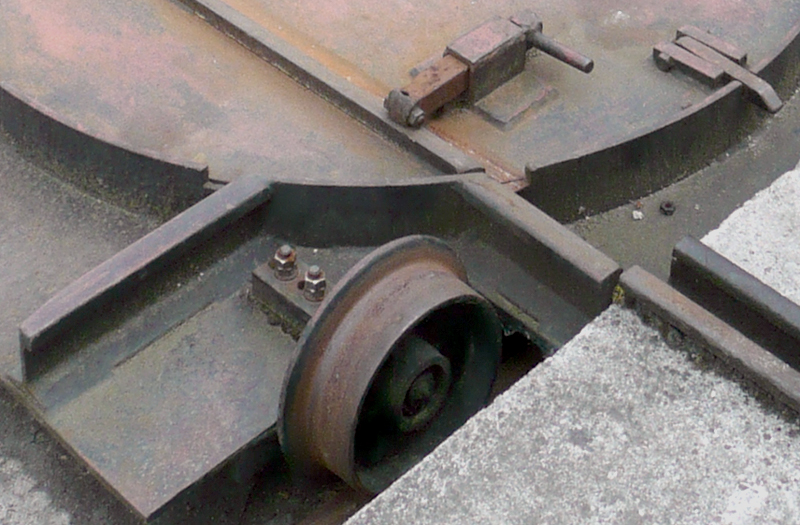

When comparing some of the prototype photos it was noticed - again only at the "second look" - that I had milled the base plate on the brakeman's side a little too short to fit all the small parts with reasonable distances.

Drehschiebebuehne_167 (fspg2)

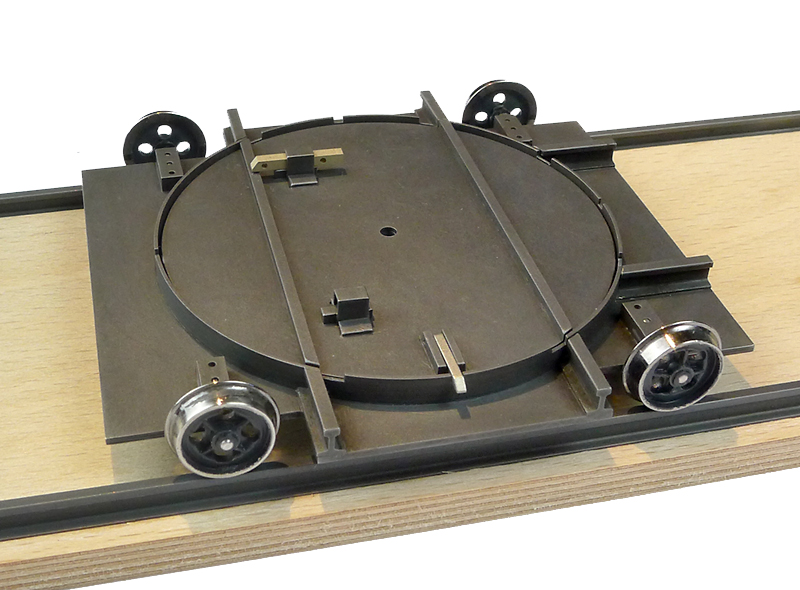

The wheels are markedly oversized in the picture above. They are later turned to final dimensions with a steel section.

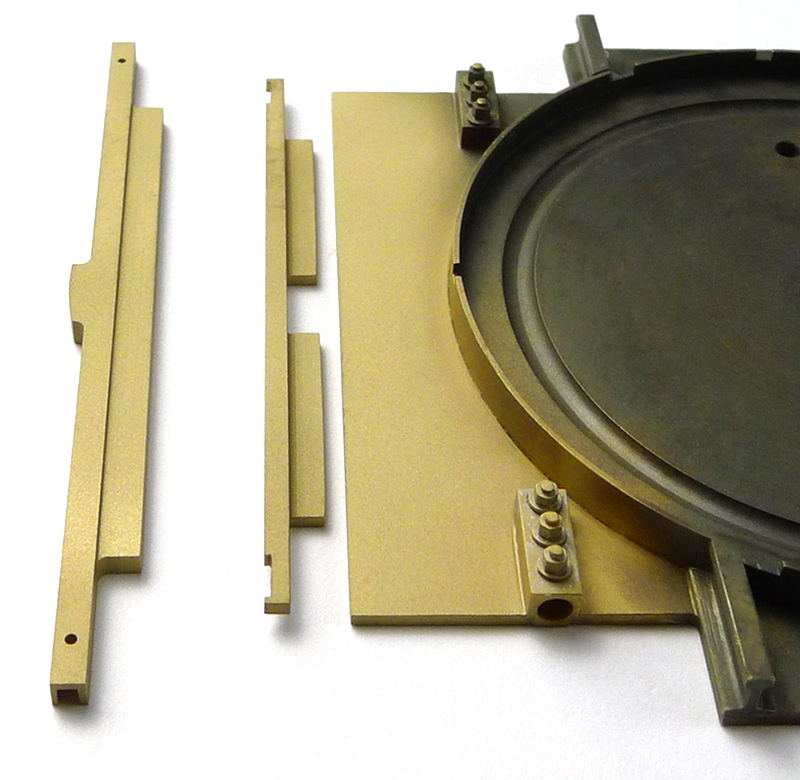

So the base plate gets an artificial extension of 1.0mm. For better durability, I milled the part on the underside with two protruding surfaces from a 2.0mm MS58 from two sides.

Drehschiebebuehne_168 (fspg2)

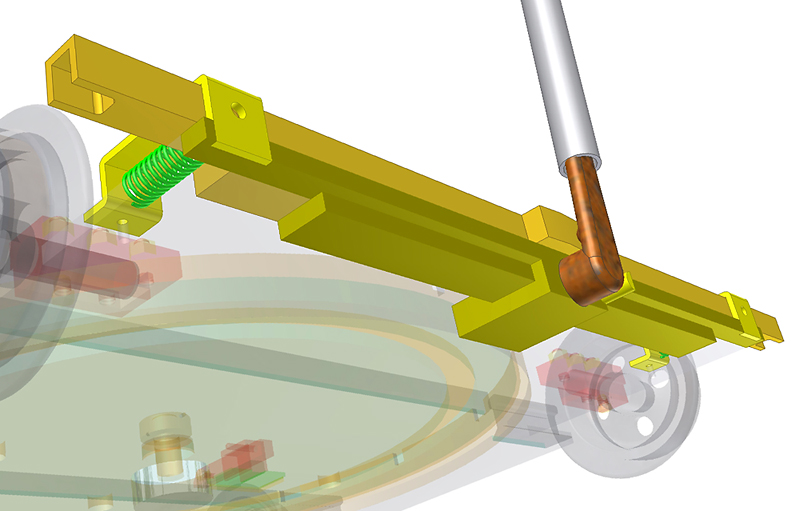

The guide block for the brake lever will follow!

Drehschiebebuehne_169 (fspg2)
:!:

[Hauk]

Those bolts are pieces of jewelery!

[finescalerr]

Unglaublich! -- Russ

[Ray Dunakin]

I love watching your progress on this project. The precision and attention to detail is fascinating.

[Barney]

"Incredible"
Barney

[fspg2]

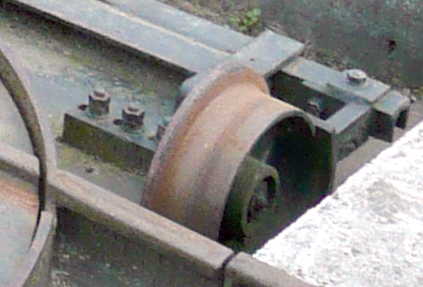

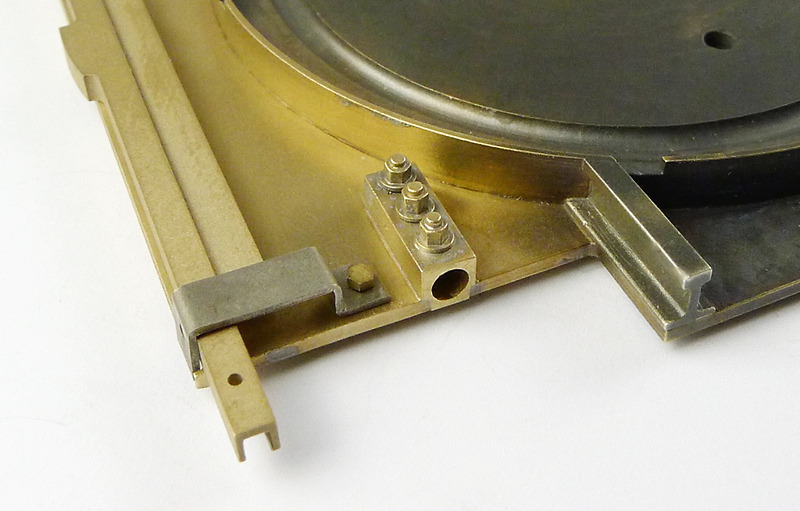

The main thing that bothers me about the wheels is the width of the wheels. Especially since the brake pads on the original have significantly more contact surface.


Drehschiebebuehne_175 (fspg2)



Drehschiebebuehne_176 (fspg2)

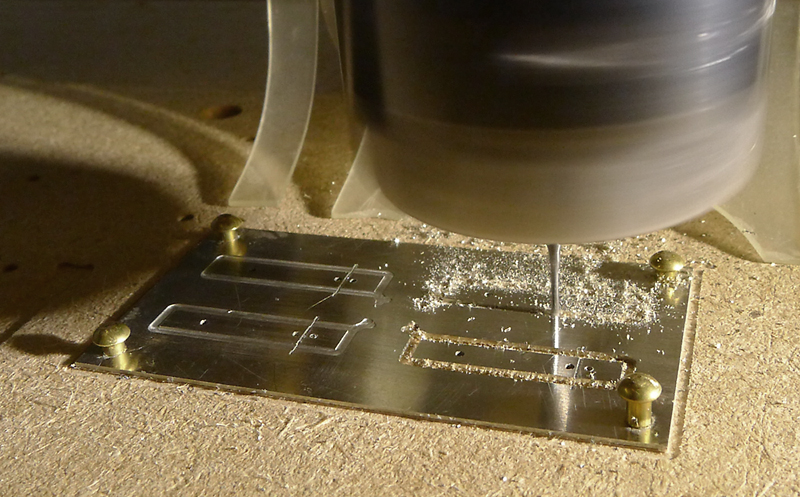

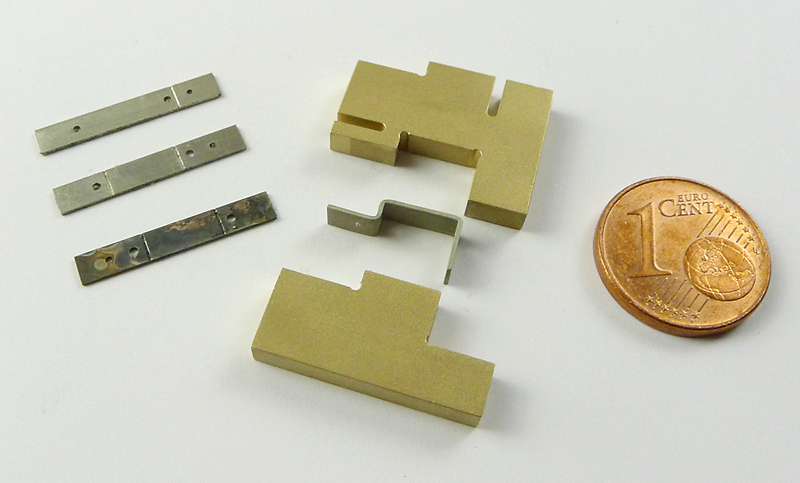

The retaining tabs of the brake yoke were milled from 0.4mm nickel silver.

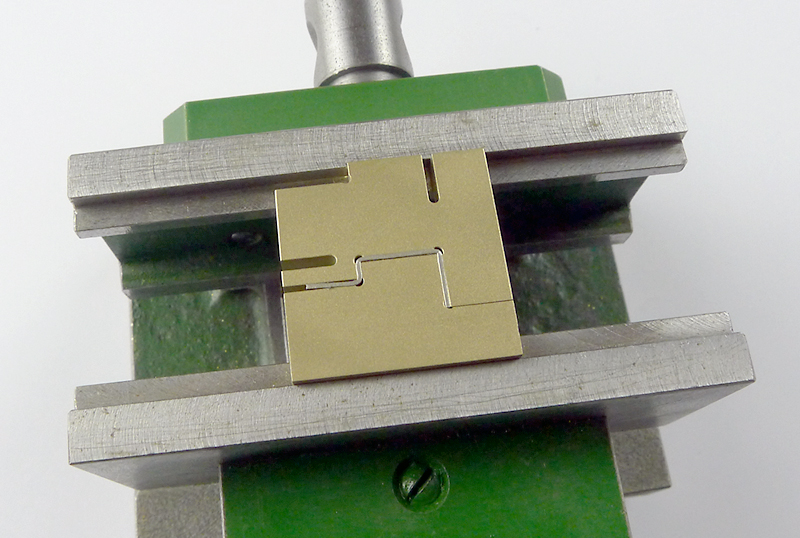

The respective kinks were milled in on both sides with a 92˚ box graver 0.2 mm deep. click
The four 2.0mm rivets ensured the exact positioning of the two sides.


Drehschiebebuehne_170 (fspg2)



The retaining tabs were pressed into shape with the help of a small brass gauge.


Drehschiebebuehne_171 (fspg2)




Drehschiebebuehne_172 (fspg2)



Drehschiebebuehne_173 (fspg2)



Drehschiebebuehne_174 (fspg2)

[finescalerr]

Superb. -- Russ

[fspg2]

The parts are slowly coming together.

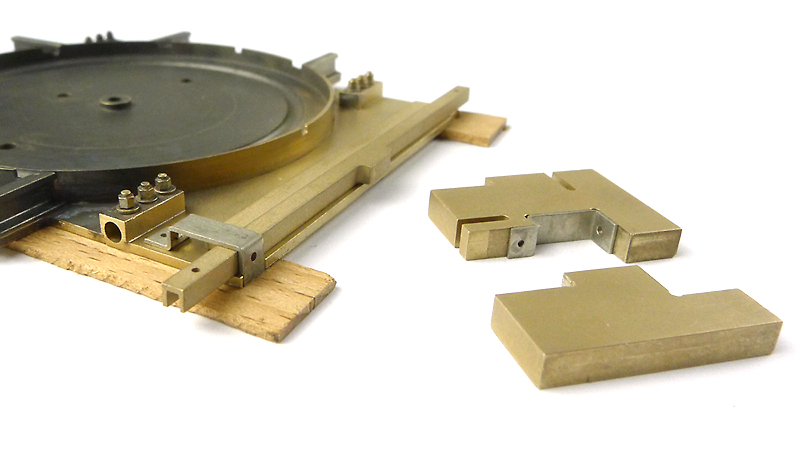

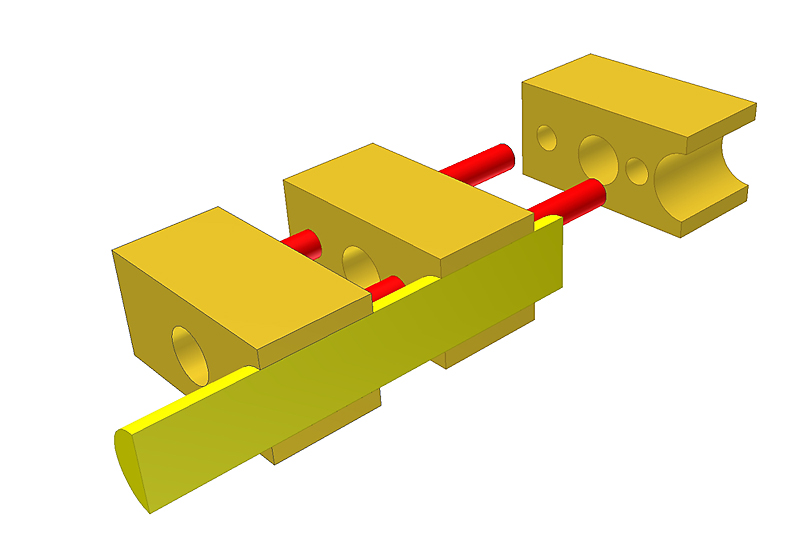

The axle bearing of the brake lever was put together from 3 small milled parts and the side limit stop was soldered on from a 2.0mm half-round rod.


Drehschiebebuehne_183 (fspg2)



Drehschiebebuehne_177 (fspg2)

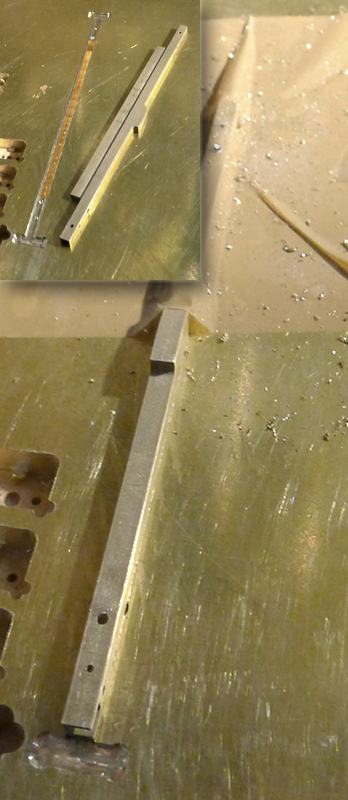

The brake lever crossbar still required two lateral 0.5mm and 0.8mm holes. For this purpose, the rod was inserted vertically into a corresponding cutout and fixed with adhesive tape.


Drehschiebebuehne_178 (fspg2)

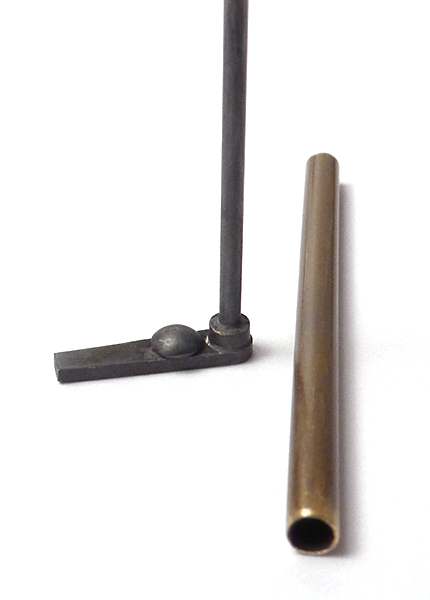

The small brake lever consists of a milled base body into which the 1.5mm axle and a rivet with a head diameter of 3.4mm were soldered.


Drehschiebebuehne_184 (fspg2)



Then all finished parts were sandblasted, cleaned under soapy water with a toothbrush and dried on the heater. Then the browning took place.

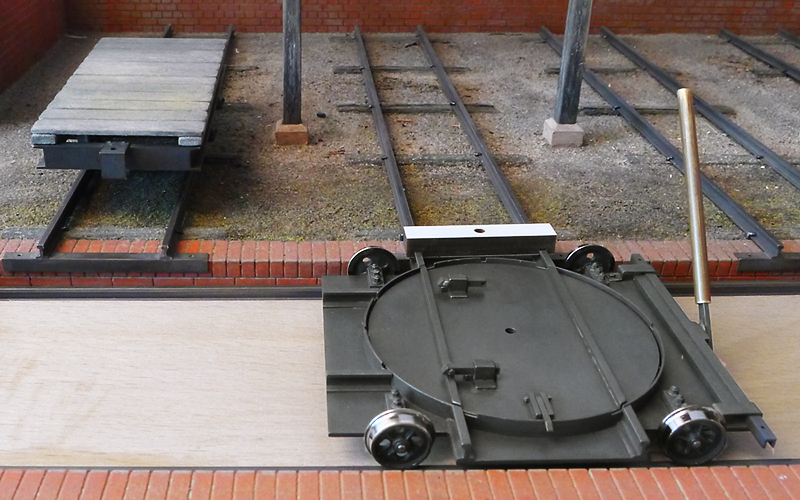

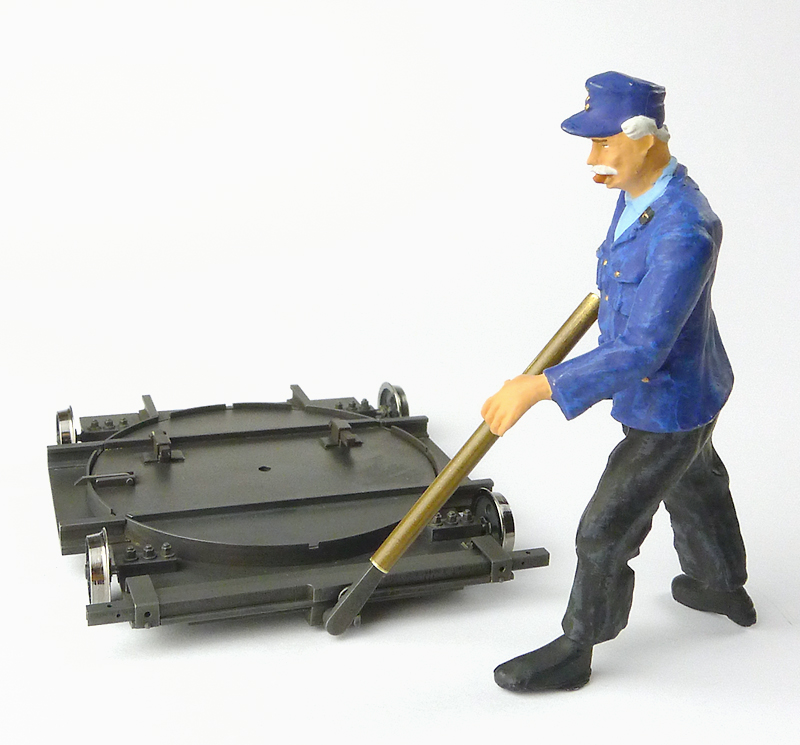

The proportions seem to fit.


Drehschiebebuehne_179 (fspg2)

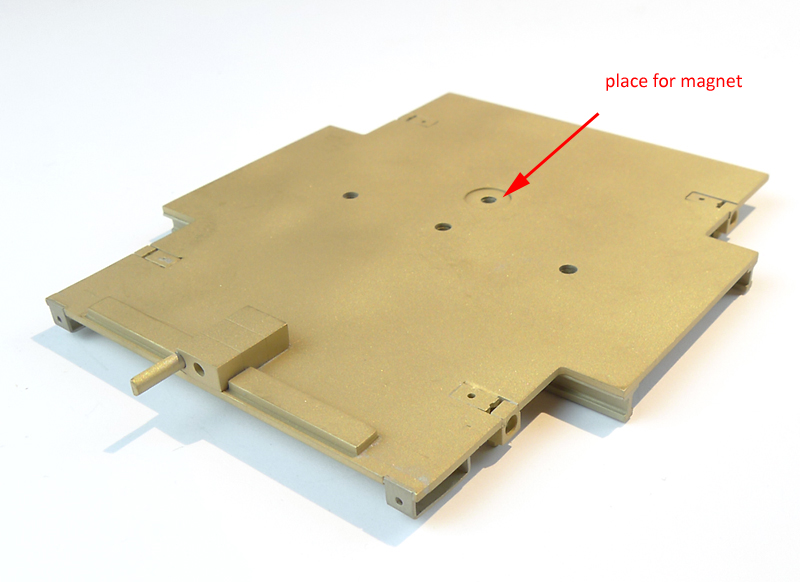

In order to facilitate the precise alignment of the tracks for driving over from the turntable to the siding, I milled a 0.5mm recess on the underside of the transfer platform (Fig. 177).
A 6.0mm neodymium magnet is glued in here.


Drehschiebebuehne_180 (fspg2)



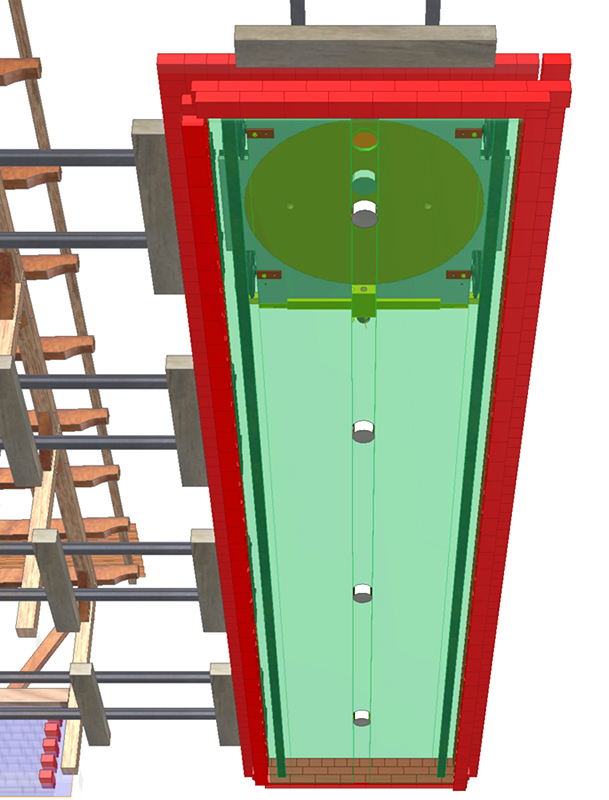

Magnets have also been glued into a central groove under the rail bed.


Drehschiebebuehne_181 (fspg2)



For the exact positioning of these four lower magnets, the transfer platform was fixed with a track gauge and the corresponding magnet was inserted into the longitudinal groove. The exact positioning was made by the magnet already glued into the stage. Glue did the rest.

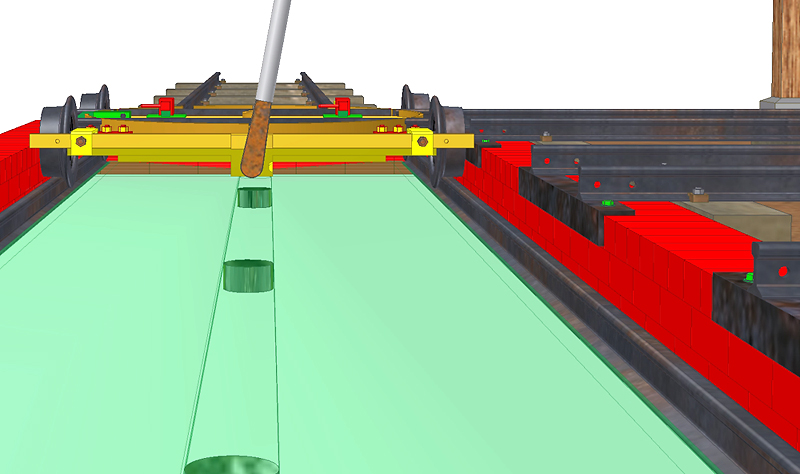

If I now move the transfer table with slight pressure from the side, the next track can be reached precisely.


Drehschiebebuehne_182 (fspg2)
