Donkey ............................. Nodding

[Gordon Ferguson]

I have a number of projects on the go, most of which have stalled for some reason or other , as somebody I know might say "too complicated all those curves and bendy bits"
So to give the brain a break had a rummage thro' the projects -  one day file and came up with this "A Nodding Donkey" oil field pump ........... I should add that by nefarious means and down-right theft I managed to lay my hands on the workshop tools produced by Barney   http://www.finescalerr.com/smf/index.php?topic=1465.msg26315#msg26315

As a number of these are not painted it gave me the opportunity to study how they had been put together ............ a very useful exercise before starting on this.

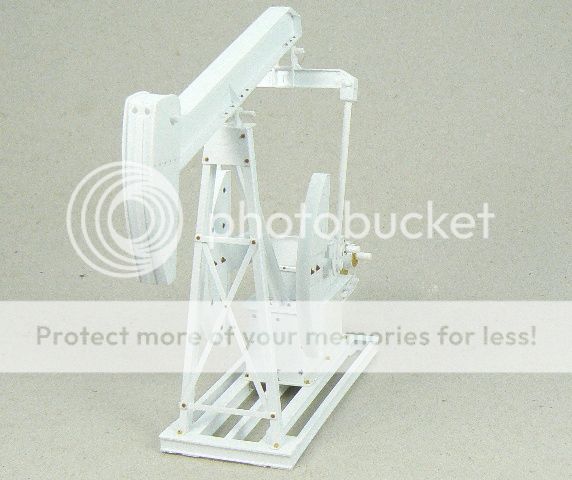

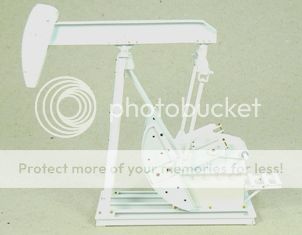

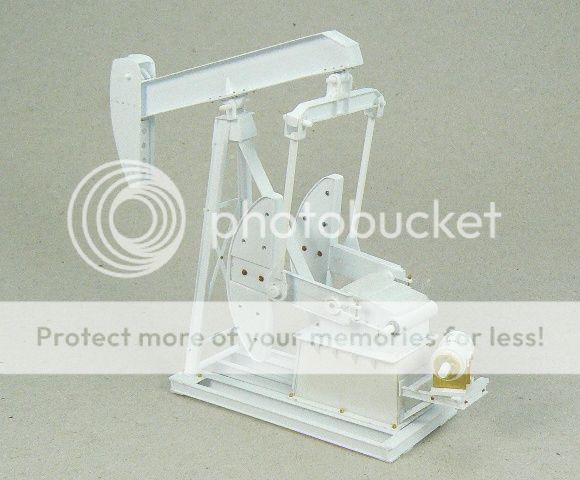

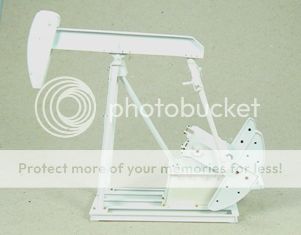

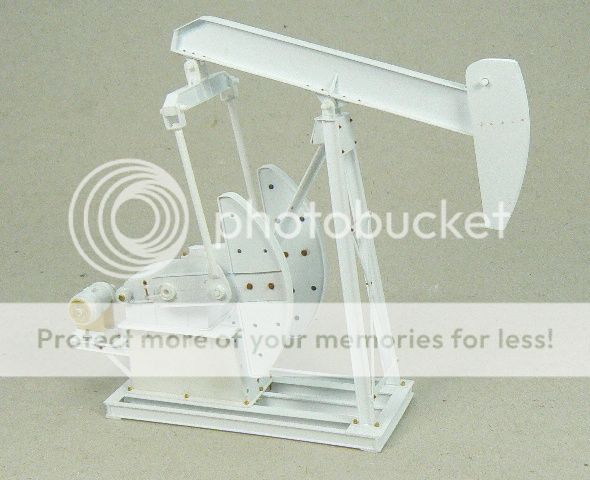

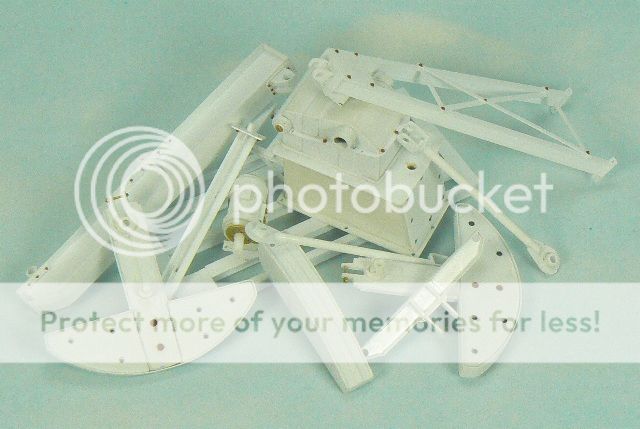

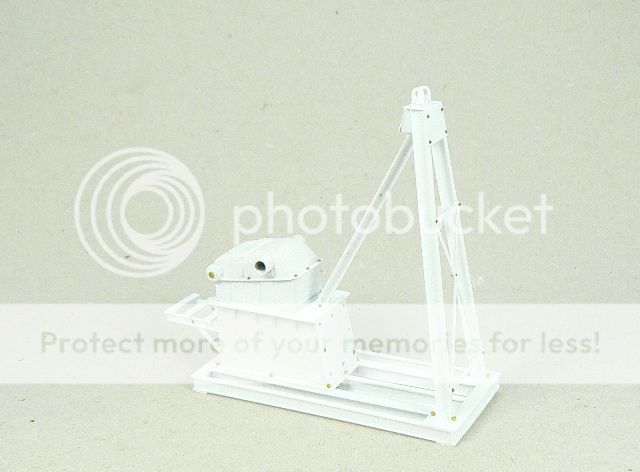

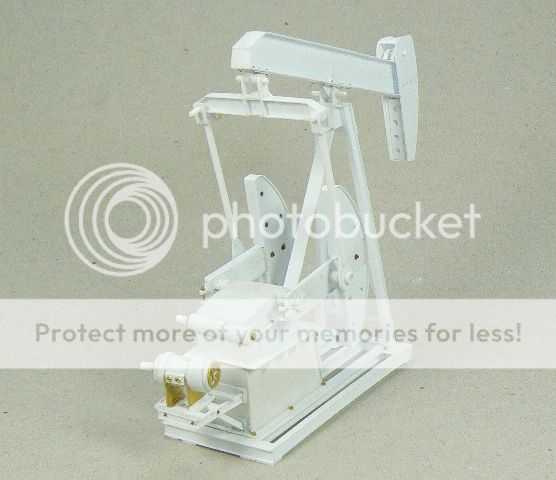

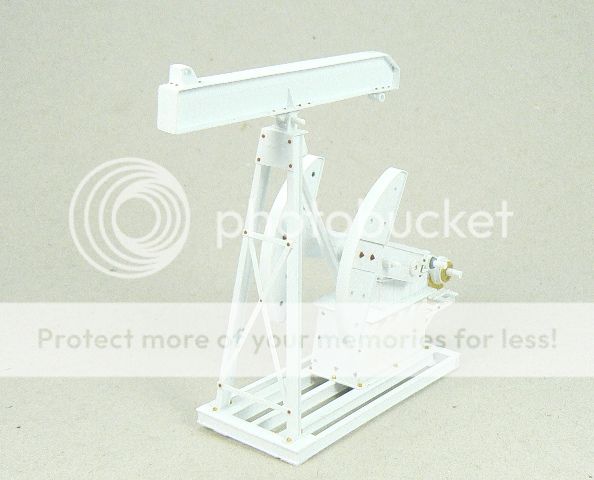

So here is the result, hopefully the photos will show the build process, starting of with a pile of bits

















At the moment most things are just placed in position which is why all the pivot/hinge rods do not have finished ends( and I notice the electric motor has moved) .... and I am still looking for some suitable pulleys for the drive chain.

Marc, if you are reading this no "Green stuff" used and Mr Surfacer  primer is in stock

Next stage will be make a concrete base for it and ultimately hope that the  unfinished Dodge will finished and then be abandoned beside the pump.
