A snapshot in time. A glimpse of the Plettenberger Kleinbahn in 1/22.5 scale.

[Bill Gill]

Volker, Yes, I understand completely what you said about being nearly impossible to align both foils to create the exact offset that you want. I once worked with a prototype of a very simple plotter that cut self adhesive vinyl film for signs and projects like you described. I think you have the steady hand to be able to paint in those 'conjunctions' on your sign. Perhaps a little masking tape on the outside of the connecting corners will help.

[Ray Dunakin]

I'm surprised that such small lettering can be cut out of foil for use as a stencil. I didn't think that such fine details could be achieved that way. I'll have to look into this as it would be very useful for my models as well.

[Hydrostat]

Volker, Yes, I understand completely what you said about being nearly impossible to align both foils to create the exact offset that you want. I once worked with a prototype of a very simple plotter that cut self adhesive vinyl film for signs and projects like you described. I think you have the steady hand to be able to paint in those 'conjunctions' on your sign. Perhaps a little masking tape on the outside of the connecting corners will help.

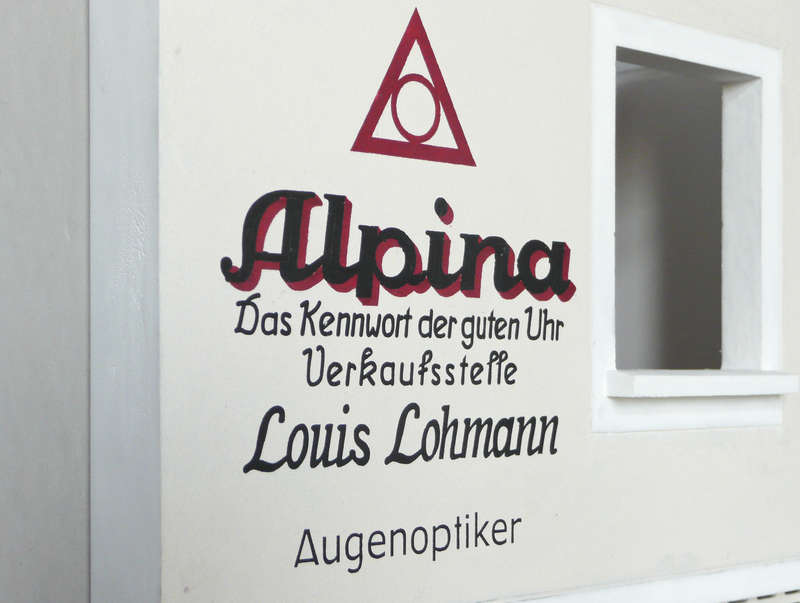

Bill, thanks again. I added the connecting corners and it looks much better now.

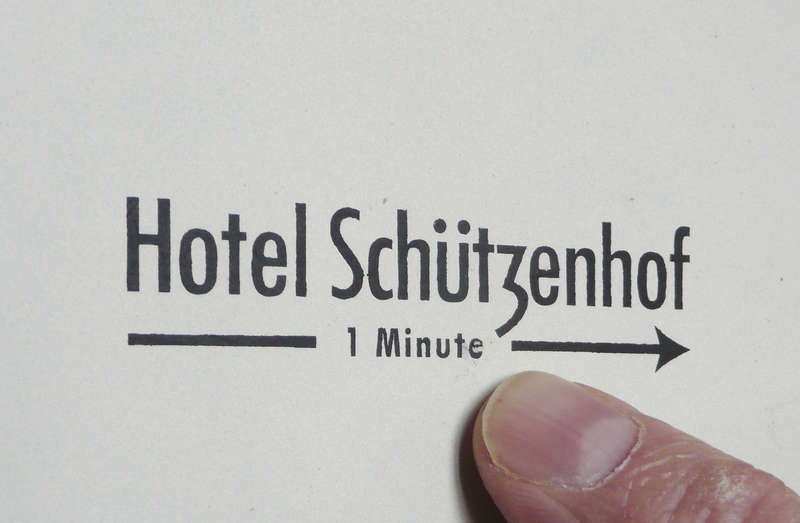

Opposite side with larger offset (mistake in the first foil, but it doesn't matter):

I'm surprised that such small lettering can be cut out of foil for use as a stencil. I didn't think that such fine details could be achieved that way. I'll have to look into this as it would be very useful for my models as well.

I think the only limitation is the tiny pieces to remain on the carrier paper, for example within the 'e'-letter, which tend to come off when removing the positive parts. There's always a tiny stretch of length not being cut, which doesn't matter, if the parts are a little bit bigger. I wouldn't use that for a locomotive livery, but it works for those hand made signs. It's helpful to use a new blade in the cutting machine.




There's a final weathering to come when the building is finished and some touchup of blemishes. It doesn't make sense at that point.

Cheers,
Volker

[Bill Gill]

That turned out very nice !

[finescalerr]

I probably couldn't do as well with an inkjet printer! - Russ

[Ray Dunakin]

Even in extreme close up it looks great!

[1-32]

hi Volker
the Alpina looks really good such a traditional looking sign.
all the best Kim.

[Hydrostat]

Some new stuff - everything work in progress, predominantly cardboard aside of the printed parts.

A kitchen cabinet:




A toilet:










A showcase, completely cut by hand:










Some shelfs, laser cut:







An old cooking stove, laser cut and edges sanded:







The tableware:

My friend Uwe printed some 1-22.5 scale dishes from my files. We wanted to test a prototypical 0.2 mm wall thickness (old pottery). He gave me an unbelievable amount of cups ... the pic doesn't even show half of it ...





Dishes mounted to removable sticky tape for spray painting.





Obviously I forgot to do the dishes beforehand.






Oh well, that's what it looked like before, at least stove and shelfs.




About photography: setup for the first picture of this post.




Cheers,
Volker

[Bill Gill]

What a great batch of many interior details! How did you clean up and finish all those little cups and plates. They look just like 'institutional grade' glazed pottery.

[Hydrostat]

How did you clean up and finish all those little cups and plates.

It's printed with an ANYCUBIC Photon straight on the base plate. There's no cleanup and finishing necessary, just cleaning in isopropyl alcohol.

[Design-HSB]

HI Volker,

my wife just told me I absolutely would have to write to you. Because her mother had such a kitchen cupboard and she is very fascinated.

Also from me absolutely succeeded your work and with that you have once again put the bar a little higher for us.

[finescalerr]

Not bad, Volker. -- Russ

[Hydrostat]

A picture of the cleaned objects:


Photo courtesy of Uwe Wettin

[TRAINS1941]

Beautiful detail work!!

Jerry

[Ray Dunakin]

Great stuff! I'm amazed at how smooth the dishes are. I think that's the best quality 3D printing I've seen yet.
